MOREDAY DC PV Surge Protection Device 3P (1500V, 40kA)
Type 2 DC surge arrester for 1500V PV strings. Un 1500V, Uc 1800V, In 20kA, Imax 40kA.
RM 90.00
Price shown in Malaysian Ringgit. Delivery calculated at checkout.
In stock — ready to ship
- Ships from Sandakan. Sabah 1–3 working days, Sarawak and Peninsular 3–7. Self-collect available at our store.
- 2 year warranty, handled locally — no shipping a fault overseas.
- Supplied by MOREDAY. Datasheets and certificates available on request.
About this product

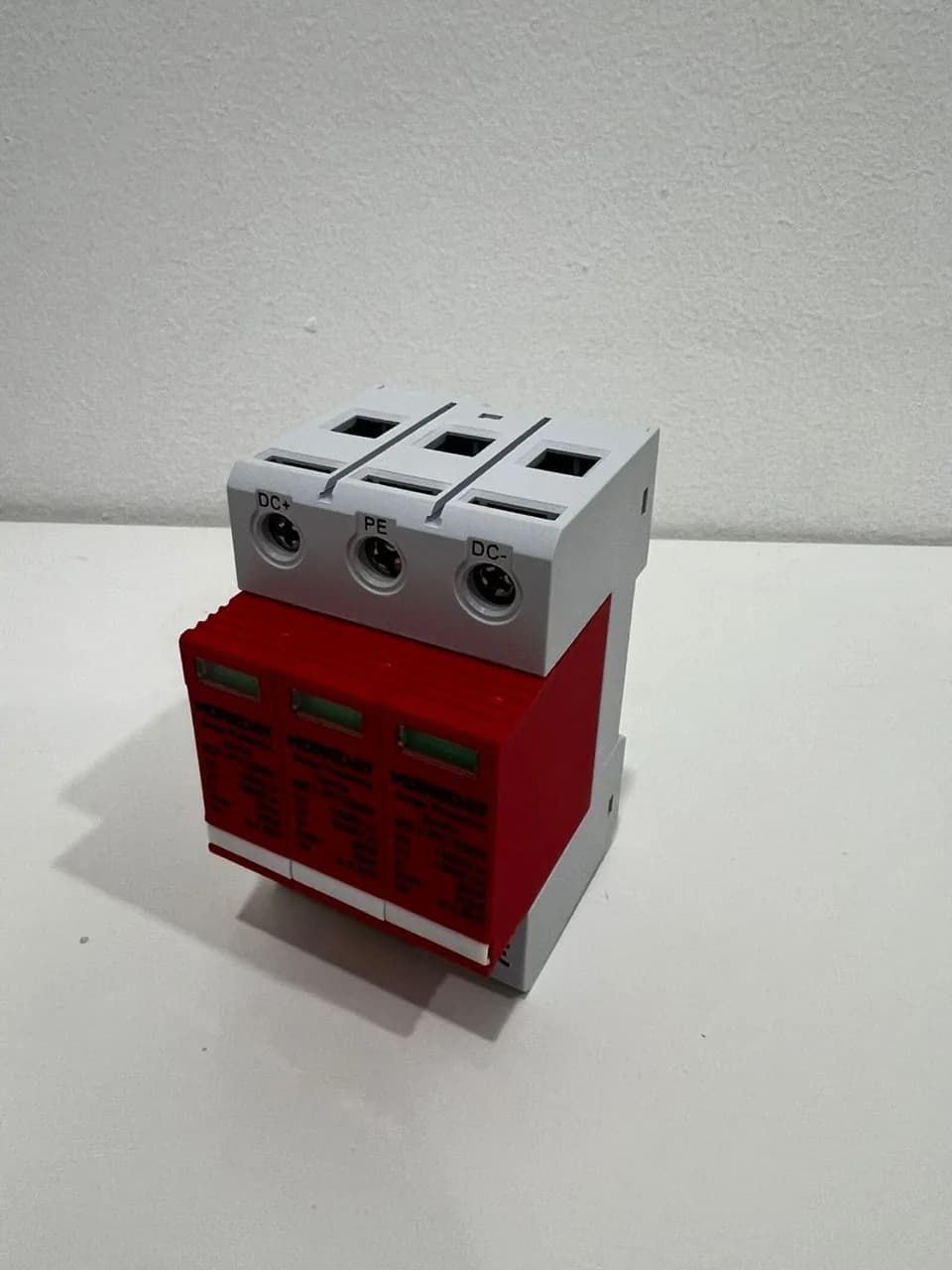

The 1500V version, for the higher string voltages used on larger commercial and utility-scale arrays. Three modules covering DC+, PE and DC−, so the array is protected both between conductors and to earth.
The rated Uc of 1800V DC gives real headroom above the 1500V nominal. That margin matters more than it looks: a cold, bright morning pushes array open-circuit voltage well above its nameplate figure, and an arrester sized with no headroom will age prematurely.
Specifications
Ratings
- Model
- MOREDAY MD1-PV1500V
- SPD type
- Type 2 (DC / PV)
- Nominal voltage (Un)
- 1500 V DC
- Max continuous operating voltage (Uc)
- 1800 V DC
- Nominal discharge current (In)
- 20 kA (8/20 µs)
- Max discharge current (Imax)
- 40 kA (8/20 µs)
- Voltage protection level (Up)
- ≤ 4.5 kV
Build
- Terminals
- DC+ / PE / DC−
- Width
- 3 modules
- Status indicator
- Green / red window
- Ingress protection
- IP20
Compliance
- Standards
- EN 50539-11
- Certifications
- CE
Installation

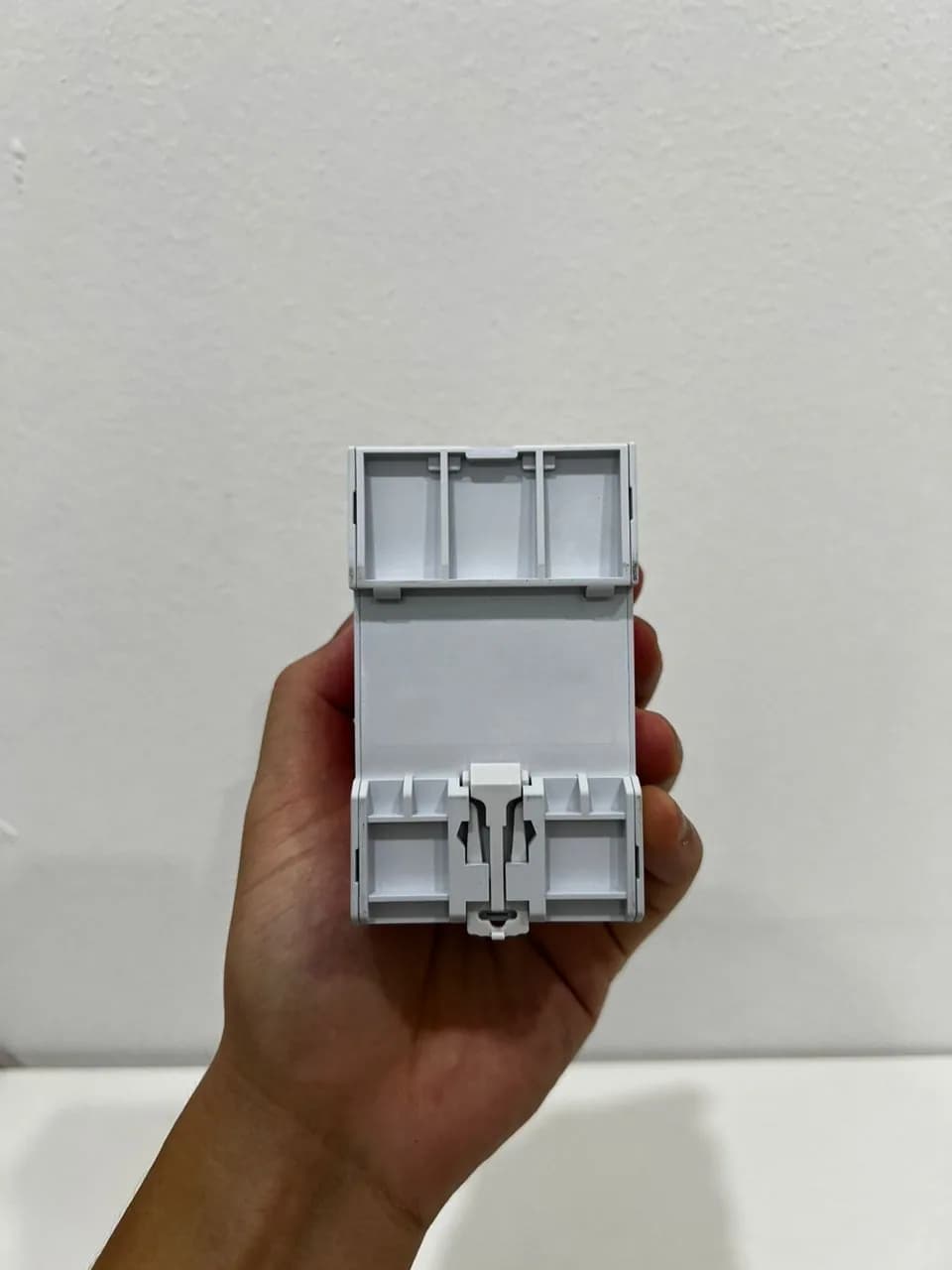

- Mounting
- 35 mm DIN rail
Support
- Warranty
- 2 years
